Arinc 429 Label List

These label codes are a supplement to and not a replacement for the label codes listed in the above mentioned and subsequent arinc specifications. Arinc 429 is a defined standard that not only describes the packet structure 32 bits but also the data formats for different labels depending on the equipment id.

Nexsys Arinc 429 Single Bit Converter Component

Arinc 429 decoder users manual 6 p a g e 23 the user defined tab the user defined tab contains all of the necessary controls when working in user defined mode.

Arinc 429 label list. The purpose of the label component is to tell the receiver what kind. 15ait arinc 429 protocol. I cant afford to buy the cd from arinc for 500 that has the labels on it so i am slowly collecting the labels as i find them and as i learn about their function.

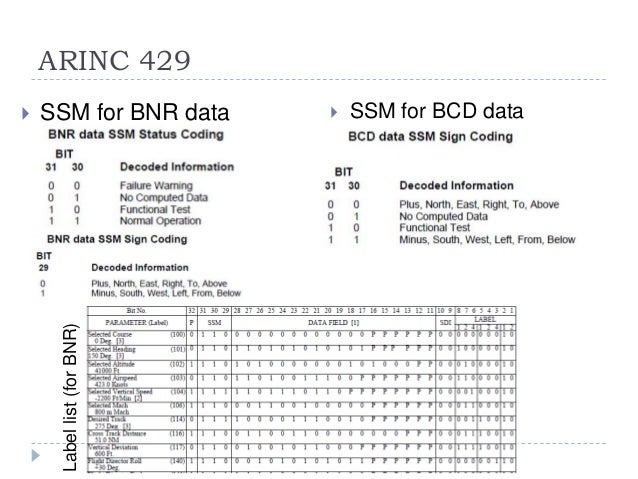

Gama publication 11 arinc 429 general aviation subset comments. It defines the physical and electrical interfaces of a two wire data bus and a data protocol to support an aircrafts avionics local area network. Bits 31 30 are assigned as the signstatus matrix field or ssm.

This optional extra is found at bits 9 and 10. Published july 1 1990. 12 changes comments on gama publication no.

Mark 33 digital information transfer system dits part 1 functional description electrical interface label assignments and word formats arinc specification 429 part 1 17 published. Depending on the words label which indicates which type of data is being transmitted the ssm field can provide different information. 2551 riva road annapolis maryland 21401.

Ive never seen a full list of standard labels but there arent enough octal labels for unique usage so you cant necessarily tell from the label number what the contents of the word refer to. Arinc 429 labels but labels are not all defined in arinc standard a specific lru can define custom values. 11 should be submitted to.

Technical standard for the predominant avionics data bus used on most higher end commercial and transport aircraft. You can use the other parts to make sense of the main data. Arinc 429 labels this is my collection of arinc 429 labels.

So you need to get label list from lru documentation. May 17 2004 an document prepared by airlines electronic engineering committee published by aeronautical radio inc. A guide to the components of the arinc 429 labels list the label.

The glass isnt half empty or half full its twice as big as it needs to be. Arinc 429 mark33 digital information transfer system is also known as the aeronautical radio inc.
